What are Ferrite memory Cores?

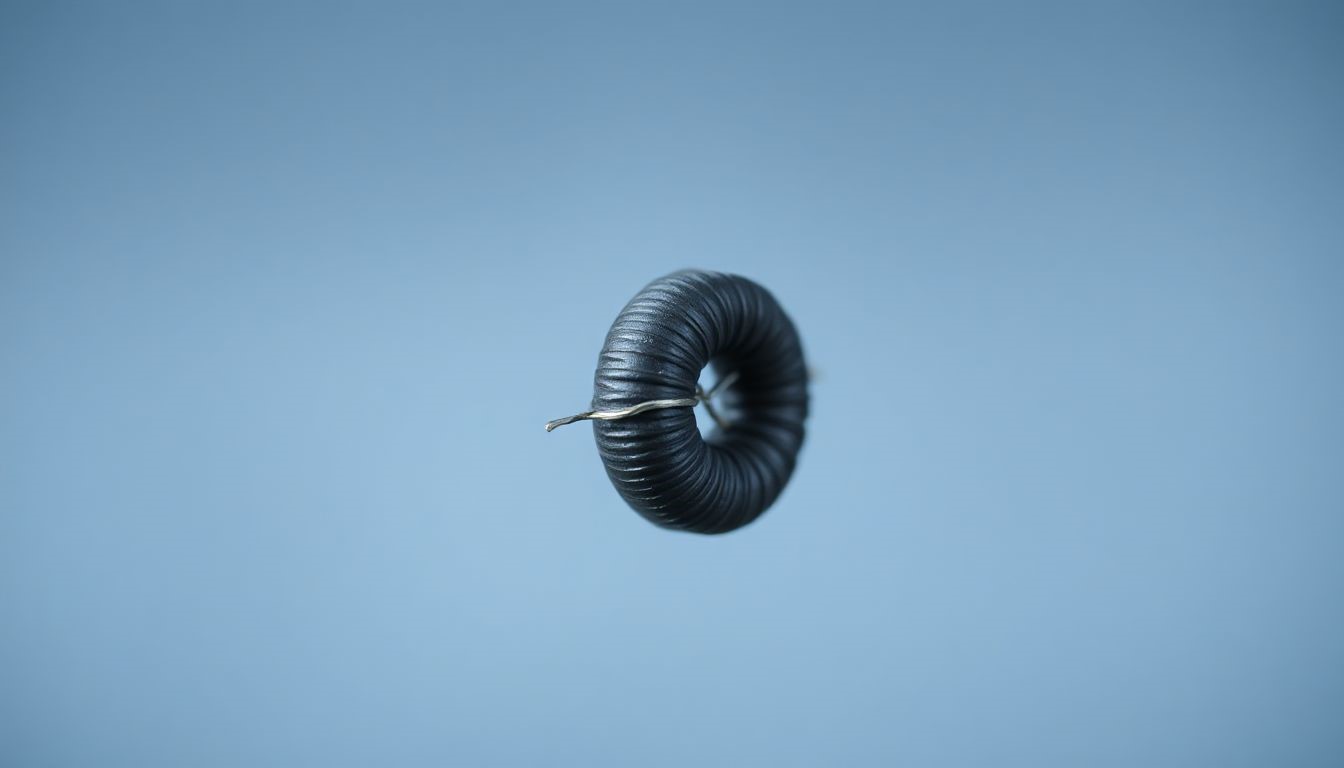

Ferrite memory cores are small, ring-shaped rings. They are constructed from a unique ceramic material that is magnetizable. They are like tiny switches that can be magnetized. In the early computers, these cores were even smaller than a grain of rice. Creating them precisely was a very precise process.
The Principle of Magnetization
Each little ferrite core acts as a single memory bit. It can store a “0” or a “1.” This is achieved by changing its direction of magnetism. We can magnetize a core in one direction for a “0.” We can magnetize it in another direction for a “1.” This useful trick allowed computers to store binary data.
Reading and Writing Data
To write data, currents are run through wires that cross over the core. This current is strong enough to “flip” the magnetization direction of the core. Reading data is just as clever. A burst of current is run, trying to flip the core into a specific state. If the core is already in that particular state, nothing much occurs. If it does flip, a tiny electrical signal, or magnetic flux, is produced. This signal is then detected by a “sense wire.”
Construction of Ferrite Memory Systems
The Core Array
Ferrite memory systems looked something like woven mats. Thousands, and occasionally millions, of tiny cores were threaded together. They formed a flat, grid-shaped plane called a memory plane. These planes loomed high in early machines. Imagine a giant loom, but instead of fabric, it created computer memory.
Driving and Sensing Circuits
Special electronic circuits supplied power to the entire system. The circuits provided precise electrical currents to the memory planes. They picked individual cores from the vast grid very selectively. Additional fragile circuits were required to “listen” for the tiny magnetic signals. The signals told the computer if a core held a “0” or a “1.”
Word Lines and Bit Lines
There were two primary ways wires ran through each core, often called X and Y. If both an X wire and a Y wire were passed current at the same time, only the core where they crossed over had sufficient power to flip. It made the computer capable of selecting any one of the cores. There was also a sense wire, a third wire, that ran through the cores. It was utilized to detect the magnetic flip when the device was being read.
The Golden Age of Ferrite Memory
Dominant Storage Technology
Ferrite memory was the predominant storage technology in computer RAM for many years. It was the best option from the 1950s until the early 1970s. The majority of large computer systems used it widely in those times. The famous IBM 360 series, for example, was fueled by ferrite core memory in its main operations.
Advantages Over Previous Technologies
Before ferrite memory, computers used much slower methods. Magnetic drums spun to store data, but it wasn’t fast to retrieve. Delay lines stored data in a stream, but not randomly. Ferrite memory offered random access, a huge improvement. It was also well-suited for speed and was very reliable for the time. That meant computers could access any piece of information instantly.
Limitations and Challenges
Even though ferrite memory had an advantage, it too was not without disadvantages. It needed continuous power to recall. Its speed was slower than what we have in RAM now. Core memory systems during the early years were hundreds of times slower than what we see today in memory. It was costly, and physically taking up space was a large issue. One megabyte of core memory would occupy a cabinet the size of a refrigerator.
The Transition
The Rise of Semiconductor Memory
New technologies soon began to appear. Integrated circuits, or ICs, soon became part of the electronics industry. These tiny chips created semiconductor memory like SRAM and DRAM. These newer forms of memory were much faster. They were more efficient and cost-effective to produce in high volumes.
Why Ferrite Memory Declined
Ferrite memory eventually became outdated. The primary reasons were its size and cost. Semiconductor memory could be shrunk and improved in speed. It also used less energy and cost less to make. The laborious process of threading wires through millions of thin cores could not compete. Miniaturization entered the picture.
Enduring Influence on Computer Architecture
Even in retirement, ferrite memory left a lasting legacy. Its fundamental ideas shaped how we plan computers today. How do we access and address information in huge collections of memory? That was the direct consequence of ferrite memory. The majority of computer pioneers would agree this fundamental concept shaped what came next.
Learning Ferrite Memory Today
Historical Relevance to Students and Hobbyists
Ferrite memory makes us understand the bigger picture. It chronicles the incredible history of computing right from the start. For hobbyists and students, it gives them a real glimpse at the way technology-related problems were solved. It makes us appreciate the incredible progress we have made.
Practical Applications
Ferrite memory is mostly a vestige these days. You won’t find it in modern products. It only has historical significance now. There are no practical applications for it for use in modern computing. It is still a fascinating reminder of history.
Analogs to Contemporary Memory Concepts
The basic principles of ferrite memory remain the same. We still keep binary information, zeros and ones. Instead of magnetic states, modern memory uses electrical states in transistors. However, the ease of selecting a specific location to store or access a bit is identical. It shows the power of out-dated ideas to provoke new ideas.
Summary
Ferrite memory was an absolutely watershed technology. It allowed early computers to grow by giving them robust, random-access memory. Its magnetic means of retaining data shaped a great deal that came next. Understanding ferrite memory gives us valuable context for the breakneck rate of digital storage and computer innovation that we see today.
