What is a Fuse?
It is a simple safety device. It has a metal wire or filament inside that melts when too much electricity flows through it. When this wire melts, it breaks the electrical circuit. This stops the flow of power, protecting your equipment from an overcurrent. Think of an overcurrent as too much electricity trying to go through a wire meant for less.
How Do they Work?
Imagine a small bridge in a river. This bridge is the fuse wire. Water (electricity) flows over it. If too much water rushes down the river, the bridge is designed to break first. This protects the bigger, more important structures downstream. In the same way, when current in an electrical circuit gets too high, the fuse wire heats up fast. It then melts, breaking the circuit. This instantly cuts off the electricity, stopping any potential harm to your valuable devices or wiring.
The Importance of Fuse Ratings
Every thin wire has specific ratings. These ratings tell you the maximum amount of current (measured in amperes, or amps) and voltage it can handle. Using it with the wrong rating is very risky. A fuse with too high an amp rating won’t blow when it should. This can let too much current through, damaging your device or even starting a fire. A fuse with too low an amp rating will blow too often, disrupting your power unnecessarily. Always match it to the circuit’s needs.
3 Types of Fuses

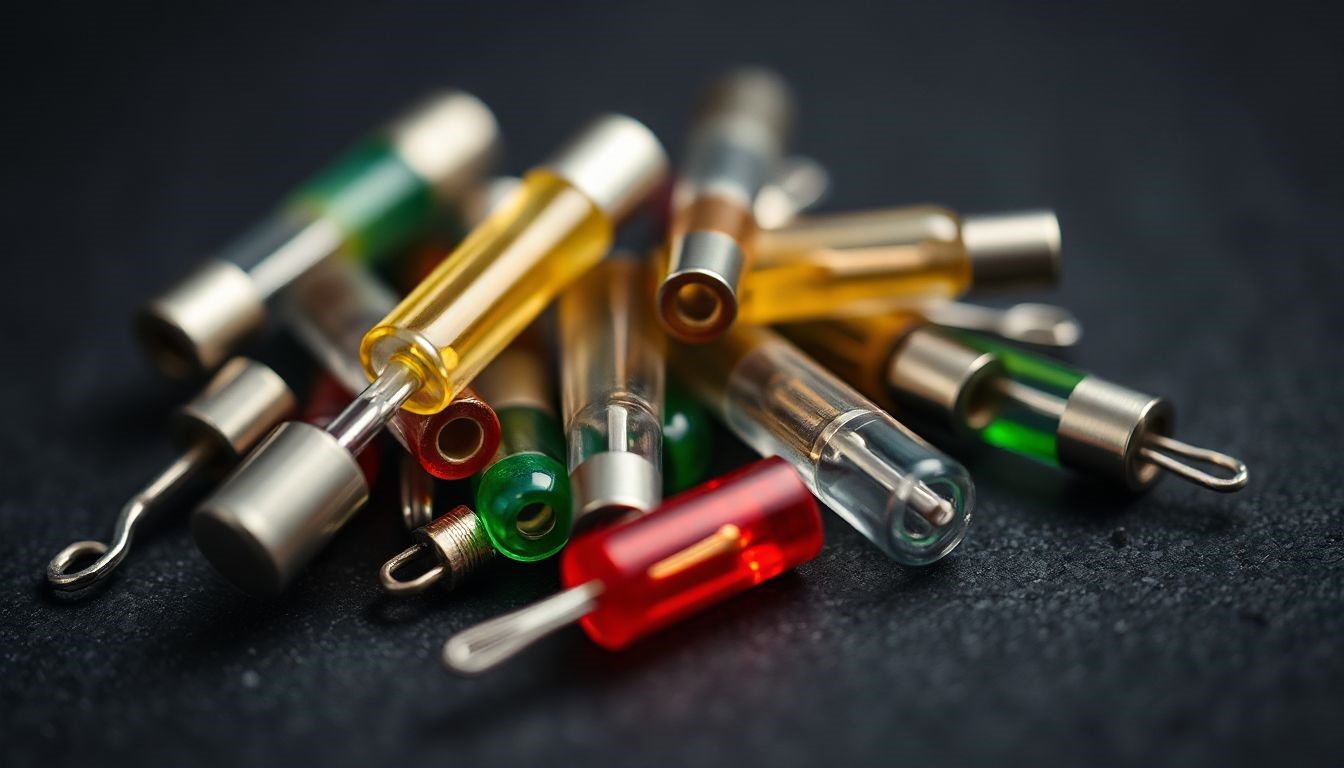

Cartridge Type
Cartridge types are common in many places. They often look like a small cylinder, either made of glass or ceramic. Glass tube let you see if the wire inside is broken. Ceramic ones are usually stronger and used in higher current applications. You’ll find them in older home electrical panels, various appliances, and some electronic gadgets. They also appear in many automotive systems.
Blade Type (Automotive)
If you’ve ever looked under the hood of your car, you’ve probably seen blade type thin wires. These are very popular in vehicles. They have two prongs that plug into a box. Blade ones come in different sizes, like ATO, Mini, and Maxi. They are also color-coded. Each color stands for a different amperage rating. For instance, a red fuse might be 10 amps, while a blue one is 15 amps. This color system makes them easy to identify and replace quickly in your car.
Resettable Type (Circuit Breakers and PPTCs)
Not all circuit protectors blow permanently. Resettable are include devices like circuit breakers and PPTCs. Circuit breakers are mechanical switches that “trip” open when there’s an overcurrent. You can reset them by simply flipping a switch back. PPTCs (Polymeric Positive Temperature Coefficient devices) work differently. Their resistance goes up dramatically when they get too hot from excess current. This limits the current flow. Once the circuit cools, their resistance drops, and they reset automatically. These devices offer a reusable solution for circuit protection.
Replacing a Blown Fuse
Signs of a Blown one
How do you know if it has blown? The most obvious sign is when an appliance suddenly stops working. Maybe a specific light fixture or an entire circuit in your house goes dead. Sometimes you can visually inspect it yourself. A glass fuse will often show a broken or charred wire inside. Ceramic ones might look discolored or have a small burn mark. Don’t ignore these telltale signs.
How to Test it?
You can test it using a simple tool called a multi meter. First, set your multi meter to continuity mode or resistance mode (ohms). Next, touch the meter’s probes to each end of the fuse. A good fuse will show a continuous path (often a beep in continuity mode or a very low resistance reading). If it is blown, the multi meter will show an open circuit (no beep or an “OL” reading for over limit). This quick test confirms if the fuse is the problem.
Safely Replacing
Replacing requires careful steps. Always, always disconnect the power to the circuit before touching any electrical components. This means unplugging the appliance or turning off the main breaker for that circuit. Carefully remove the old fuse. Then, insert a new fuse that has the exact same current and voltage ratings. Using a fuse with the wrong rating can be dangerous. Never use makeshift substitutes like coins or pieces of wire. They can cause severe damage or electrical fires.
Troubleshooting
What Causes it to Blow Repeatedly?
It blows once is often easy to fix with a replacement. But if a fuse keeps blowing, it signals a deeper problem. Common causes include a faulty appliance or device drawing too much current. You might also have a short circuit, where electricity takes an unintended path. An overloaded circuit, with too many devices plugged in, is another common culprit. Lastly, using an incorrect fuse rating will definitely cause repeated blowing.
Diagnosing Short Circuits
Understanding the difference between an overload and a short circuit helps. An overload happens when you plug too many things into one circuit. A short circuit occurs when current finds a direct, low-resistance path, usually due to damaged wiring. To find a short, start by unplugging all devices from the troubled circuit. Replace the fuse. If it blows again with nothing plugged in, the problem is likely in the wiring itself. If it holds, plug in devices one by one until the fuse blows again. This helps find the faulty item.
Advanced Fuse Concepts
Fuse Types by Speed
Not all fuses blow at the same speed. Fast-acting, or fast-blow, fuses react almost instantly to an overcurrent. They are great for protecting sensitive electronics that can’t handle even a brief surge. Time-delay, or slow-blow, fuses are designed to withstand temporary, harmless current surges. These are often used with motors or transformers. Motors, for example, draw a lot of current for a moment when they first start. A slow-blow fuse allows this temporary surge without blowing, but still protects against true over currents.
Their Role in Preventing Electrical Fires
The most critical role of a correctly functioning fuse is fire prevention. When a wire carries too much current, it heats up. This heat can melt insulation and ignite surrounding materials, leading to an electrical fire. By blowing and cutting off power, it stop this dangerous overheating before it can cause a blaze. The National Fire Protection Association (NFPA) reports that electrical failures and malfunctions are a leading cause of home fires. Many of these fires could be prevented with proper circuit protection.
Conclusion
They are small parts with a huge job. They are essential safety devices that protect your electrical systems and devices. They work to stop dangerous over currents and prevent hazards like fires or equipment damage. Understanding different fuse types, their ratings, and how to replace them properly is incredibly important. While fuses are simple components, using them correctly is vital for your electrical safety. Always seek professional help from a qualified electrician when you face persistent electrical issues or feel uncertain about troubleshooting.
