What is the Hall Effect?

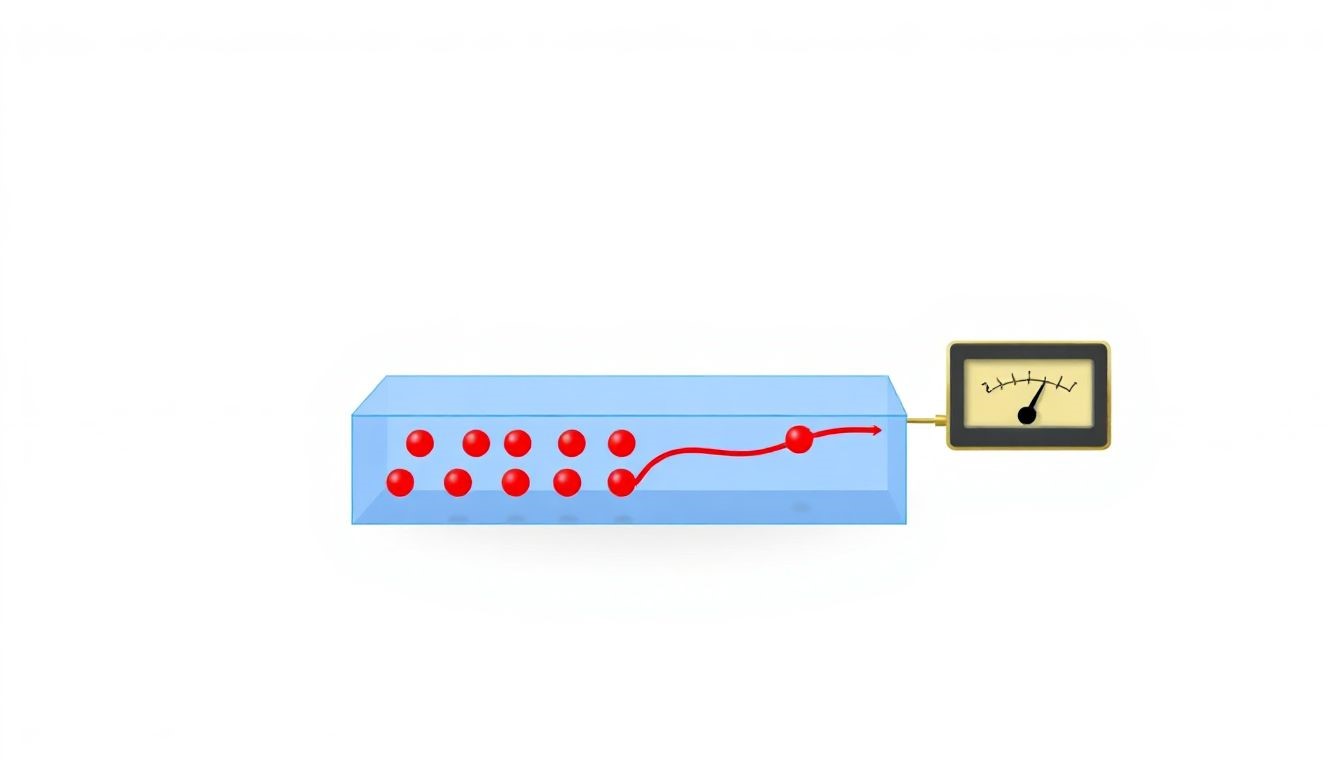

The Hall effect happens when an electric current flows through a conductor, like a metal strip. If you place this conductor into a magnetic field that is perpendicular to the current, something interesting occurs. The moving charge carriers, whether they are electrons or positively charged “holes,” get pushed to one side of the material.
This push comes from the Lorentz force. This force acts on any moving charge within a magnetic field. It makes the charges gather on one edge of the conductor, while the opposite edge becomes deficient in charges. This separation creates a voltage.
This voltage is called the Hall voltage. It builds up across the width of the conductor, perpendicular to both the current and the magnetic field. This voltage stops growing when the electric field it creates perfectly balances the magnetic force pushing the charges.
The Hall Coefficient and its Significance
Every material has a Hall coefficient, symbolized as $R_H$. This property tells us a lot about the material itself. It depends on the type of charge carriers (electrons or holes) and how many of them there are.
You can calculate the Hall coefficient using a simple formula involving the Hall voltage, current, magnetic field, and material thickness. This calculation is vital for understanding a material’s electrical behavior. It helps scientists categorize and study new substances.
The sign of the Hall coefficient shows if the main charge carriers are negative electrons (n-type) or positive holes (p-type). Its magnitude tells you the concentration of these carriers. This makes it a great tool for material science.
Factors Influencing
Many factors can change how strong the Hall voltage is. Knowing these helps us use the Hall effect effectively in our designs. Each variable plays a critical role in the final measurement.
First, the strength of the magnetic field directly affects the Hall voltage. A stronger magnetic field means a larger Hall voltage. This makes Hall effect sensors very sensitive to magnetic changes.
Second, the amount of current flowing through the conductor also matters. More current means more moving charges, which in turn leads to a higher Hall voltage. This relationship is also direct and proportional.
Finally, the material’s properties are key. A thinner material or one with fewer charge carriers will produce a larger Hall voltage for the same magnetic field and current. This is because the charges don’t have as much space to spread out, increasing the voltage difference.
Hall Effect Sensors:
How Hall Effect Sensors Work
Hall Effect sensors are clever devices that use the Hall Effect to detect magnetic fields. They turn magnetic presence into an electrical signal. This signal can then be used for various control and measurement tasks.
At its heart, a Hall sensor has a tiny Hall element. This element is usually a thin piece of semiconductor material. It also includes special circuits for amplifying the tiny Hall voltage and shaping the signal.
There are two main types of Hall sensors. Linear (analog) sensors give an output voltage that changes smoothly with magnetic field strength. Digital sensors, on the other hand, switch on or off when a magnetic field reaches a certain level, acting like a simple switch.
Real-World Applications of Hall Effect Sensors
Hall effect sensors are everywhere, often hidden in the things we use daily. Their versatility makes them incredibly useful in many industries. You probably interact with them without even knowing it.
In cars, these sensors are crucial for safety and performance. They measure wheel speed for your anti-lock braking system (ABS) and detect the position of your throttle pedal. They also track the crankshaft and camshaft positions, which is vital for engine timing.
You’ll also find them in consumer gadgets. Many mobile phones use them to detect when a flip cover closes. Game controllers use them for precise joystick input. Even your home appliances might use them for sensing door closures or motor speeds.
Industries rely on them too. They work as proximity switches in factories, detecting when objects are near without touching them. They also sense the speed and direction of motors. Plus, they can measure electric current without breaking the circuit.
In medicine, Hall sensors play a quiet but important role. They can be found in devices like pacemakers, monitoring position and movement. Their small size and reliability are big advantages in such critical applications.
Advantages of Hall Effect Sensors
These sensors offer many benefits, which explains their widespread use. They are a top choice for many sensing challenges. Their design makes them very effective and dependable.
One major advantage is their non-contact operation. They can detect objects or magnetic fields without needing to touch anything. This reduces wear and tear, making components last much longer.
They are also very durable and reliable. Hall sensors handle tough conditions well, resisting dust, dirt, and moisture. This robustness means they work consistently in challenging environments.
Furthermore, these sensors are known for their speed and accuracy. They react quickly to changes in magnetic fields. This allows for precise measurements and rapid responses in various control systems.
Advanced Applications and Emerging Technologies
Current Sensing with the Hall Effect
Beyond just detecting magnets, the Hall effect is a fantastic way to measure electrical current. It does this without directly touching the electrical circuit itself. This non-invasive method is incredibly useful for safety and monitoring.
The principle is simple: any current flowing through a conductor creates a magnetic field around it. A Hall sensor placed near this conductor can then detect that magnetic field. The strength of the field directly relates to the current flowing.
There are two main types of Hall effect current sensors. Open-loop sensors give a direct voltage output proportional to the current. Closed-loop sensors use a feedback mechanism to create a balancing current, offering higher accuracy and better temperature stability.
Magnetic Field Measurement and Mapping
Hall effect sensors are excellent tools for measuring magnetic fields with high precision. They act like tiny compasses, giving exact readings of field strength and direction. This capability makes them valuable in many scientific and industrial areas.
Scientists use them in research to study magnetic materials and properties. Geologists use them for geophysical surveys, mapping out the Earth’s magnetic field. Engineers also use them to test the magnetic characteristics of various components.
When you combine several Hall sensors into an array, you can create a 3D picture of a magnetic field. This allows for complex mapping. It helps us understand intricate magnetic patterns in everything from motors to medical scanners.
Conclusion:
The Hall effect is a powerful electromagnetic principle. It shows us how magnetic fields push moving electric charges, creating a measurable voltage. This simple interaction has shaped so much of our modern world.
From ensuring your car’s safety to powering your smartphone, Hall effect sensors are everywhere. They offer reliable, non-contact measurements in countless applications. Industries, consumer electronics, and medical devices all benefit from this ingenious discovery.
As technology advances, the Hall effect will continue to drive innovation. We will see smaller, more sensitive sensors and new ways to apply this fundamental physics. Its journey from a lab discovery to an everyday essential proves its lasting value.
